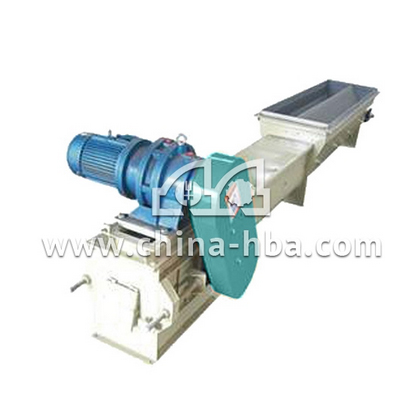

TGSU Self-Cleaning Scraper Conveyor
Technical specification
| Parameter | TGSU16 | TGSU20 | TGSU25 | TGSU32 | TGSU36 | TGSU40 | TGSU50 |
| U channel dia.(mm) | 160 | 200 | 250 | 320 | 360 | 400 | 500 |
| Chain pitch(mm) | 60 | 60 | 60 | 80 | 80 | 80 | 100 |
| Linear speed(m/s) | 0.35-0.6 | 0.35-0.6 | 0.35-0.6 | 0.35-0.7 | 0.35-0.7 | 0.35-0.7 | 0.35-0.7 |
| Capacity(t/h) | 10-25 | 25-30 | 30-45 | 45-80 | 80-120 | 120-150 | 150-260 |
