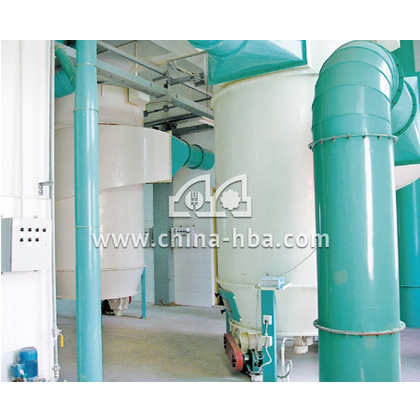

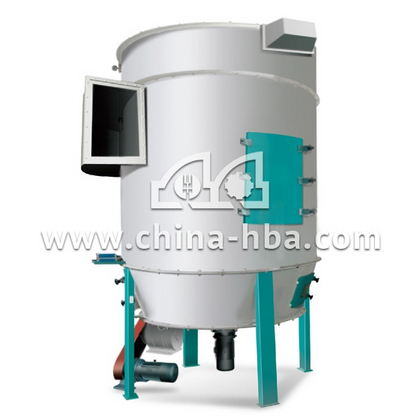

HCCM Impulse Dust Filter
• Dusty air passes through cloth sleeves and dust is filtered out by cloth sleeves. Solenoid valve produces reversed air which blows and cleans the sleeves.
• It is widely used for separating air and dust in normal temperature.One top section with integrated clean air chamber, rinsing air tank,diaphragm-valves in Alu-housing and rinsing-air jets.
• The sleeve cleaning process is electro-pneumatically controlled at time intervals.
技术规格
| 模型 | Cloth sleeve length (毫米) | 风量 (立方米/小时) | Filtrating area (m²) | Discharging power (千瓦) | 重量 (公斤) | 尺寸 (毫米) |
| HCCM-52 | 1800-2400 | 2112-13830 | 35.2-46.1 | 1.1+1.1 | 1505-1584 | Φ1580×(3443-4043) |
| HCCM-78 | 1800-2400 | 3090-20730 | 51.5-69.1 | 1.1+1.1 | 2129-2258 | Φ1840×(3443-4043) |
| HCCM-104 | 1800-2400 | 4116-27630 | 68.6-92.1 | 1.5+1.1 | 2767-2911 | Φ2020×(3443-4043) |
| HCCM-130 | 1800-2400 | 5292-34560 | 88.2-115.2 | 1.5+1.1 | 3304-3469 | Φ2350×(3443-4043) |
