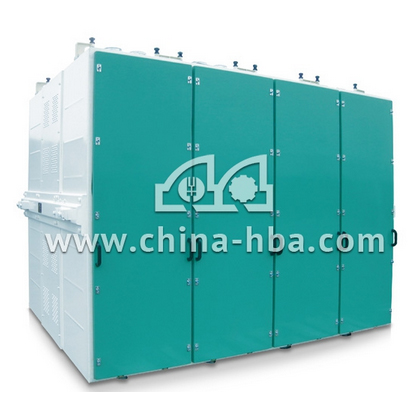

• It is an important equipment in flour processing. Plansifter is mainly used for grading and inspecting of stocks from various systems in flour grinding.
• Sifter housing of self-supporting steel construction, divided into 2 sifter sections and 1 drive section. Sifter sections divided into sifter compartments.
• The two sifter sections with a total of 6/8 compartments with 24 to 28 stacked sieve frames each.Sieve frames consisting of frames of wood, with abrasion-resistant plastic lining and sieve trays of tin-plated sheet steel. Combi-cleaner for sieves and trays.Fiber glass suspension rods.Inlet tables with suspension rods.Inlet and outlet sleeves.
• Built-in V-belt drive and motor, centrifugal counterweight running in roller bearings.
Technical specification
| Model | HFSG 4×24Z | HFSG 6×24Z | HFSG 8×24Z |
| Sieve frame size (mm) | 640×640 | 640×640 | 640×640 |
| Bin quantity | 4 | 6 | 8 |
| Sieve frame quantity | 18-28 | 18-28 | 18-28 |
| Sieve area (m2) | 21.0-38.2 | 31.6-57.3 | 42.1-76.4 |
| Rotating speed (r/min) | 240 | 240 | 240 |
| Swing diameter (mm) | 60-65 | 60-65 | 60-65 |
| Power(kw) | 4 | 5.5 | 7.5 |
| Installation height (mm) | 3540-3785 | 3540-3785 | 3540-3785 |
| Effective sieve frame height (mm) | 2100 | 2100 | 2100 |
| Weight (kg) | 2750 | 3700 | 4700 |
| Dimension (mm) | 1780×2490×3540 | 2528×2490×3540 | 3140×2490×3540 |
