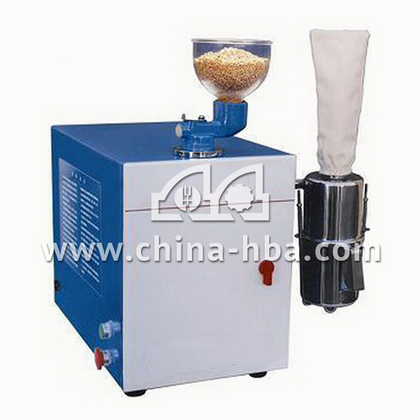

Hammer Type Whirlwind Mill(JXFM110)
JXFM110 hammer type whirlwind mill is an stable and endurable crushing instrument that has a beautiful appearance, compact structure, easy operation.
Features
• The built-in temperature protector in the motor can stop the motor automatically once the motor temperature is higher than set value; when the temperature becomes normal, the motor can start again;
• The instrument can be matched with an auto feeder, which can control the feeding speed of sample with high moisture or grains with husks and improve crushing effect.
• The application scope includes gluten quantity and quality, grain viscosity, wheat falling number, etc.
Technical specification
Working power | AC220±10V 50Hz |
Motor power | 750W |
Working chamber dia. | 110mm |
Hammer speed | 16800r/min |
Sieve pore dia. | 0.5, 0.8, 1.5mm |
Dimension | 530mm×530mm×650mm |
Total weight | 51kg |
